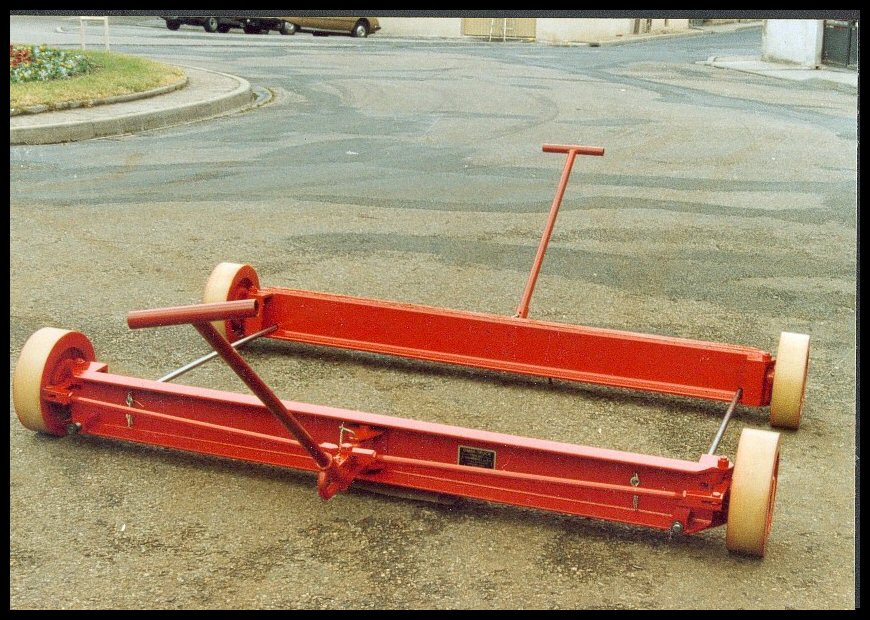

Omni-Truck
The OMNI-TRUCK is a handling trolley designed for moving heavy and bulky loads up to 45 tonnes. Usually used for moving safely heavy machines, it can also be used as a trailer-platform for various handlings.

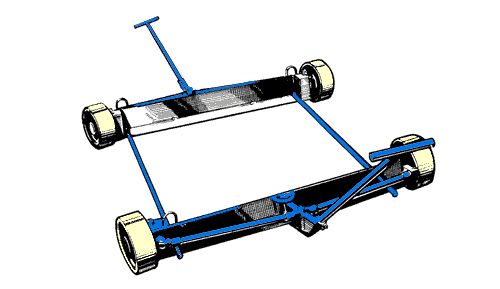

The OMNI-TRUCK consists of two separate load-bearing axles each with steering gear, giving a 30° turning radius to the right or left. It becomes integral with the load which feets between the two axles held firmly together by the adjustable track rods. Its structure and the possibility to adapt other systems on the two axles widen the range of the utilisations.
OMNI-TRUCK offers:
Safety
Sturdyness
Simplicity of use
Cost savings
The OMNI-TRUCK is available in his 15 and 45 tonnes versions, 45 tonnes being the highest acceptable load. It can also be delivered with polyurethane, rubber or cast-iron tyres.
More information and detailed technical caracteristics are available in the following documentation :
Omni-truck Raimbault.pdf
OMNI-TRUCK with special caracteristics can be designed on demand.
For any other information or prices list, please contact us.

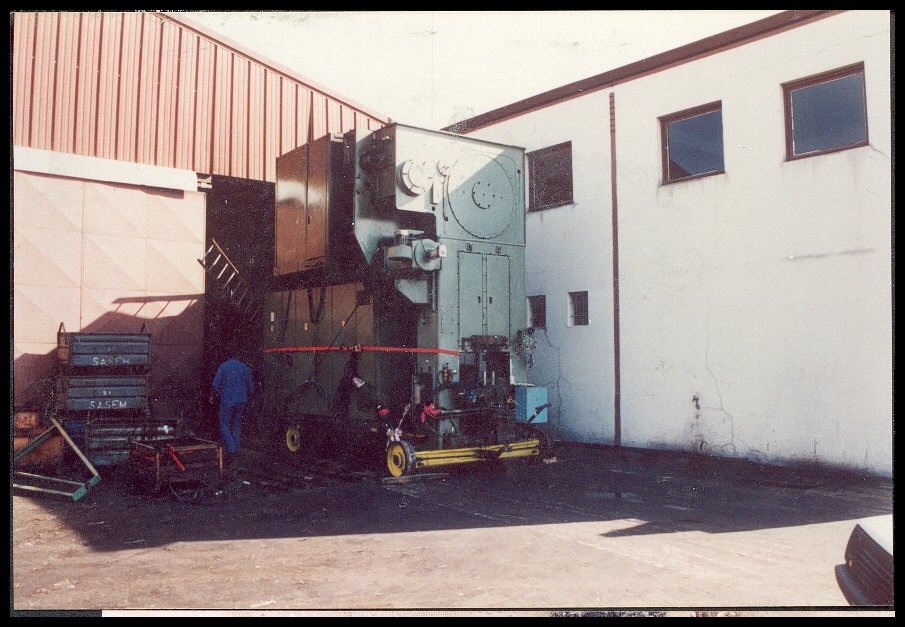

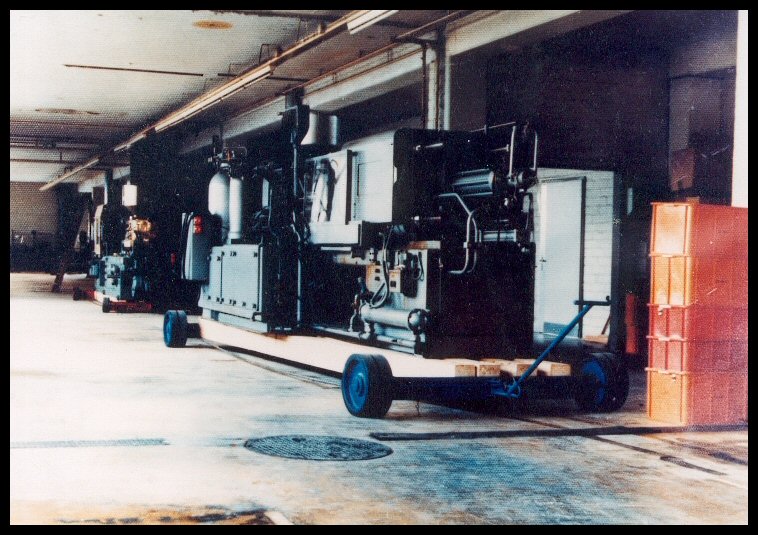

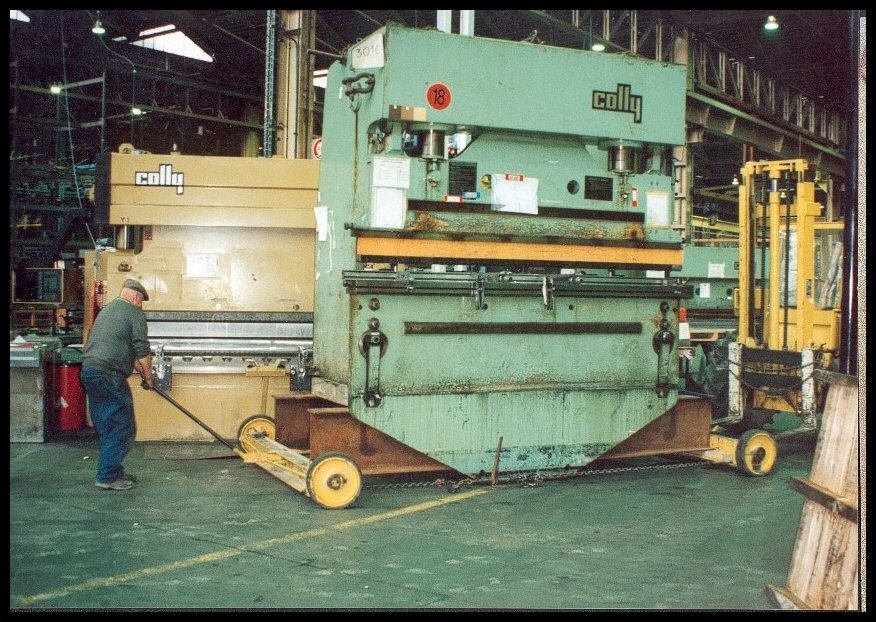

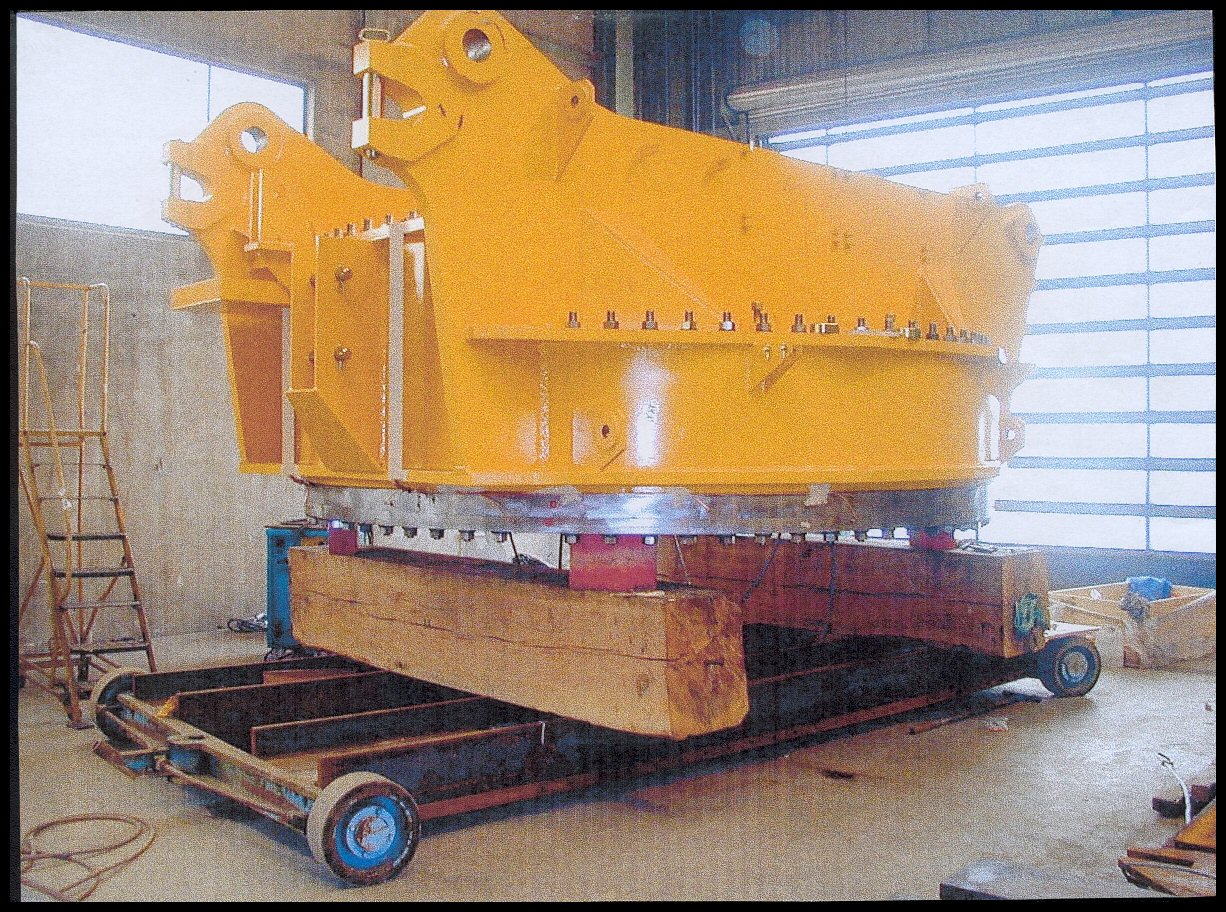

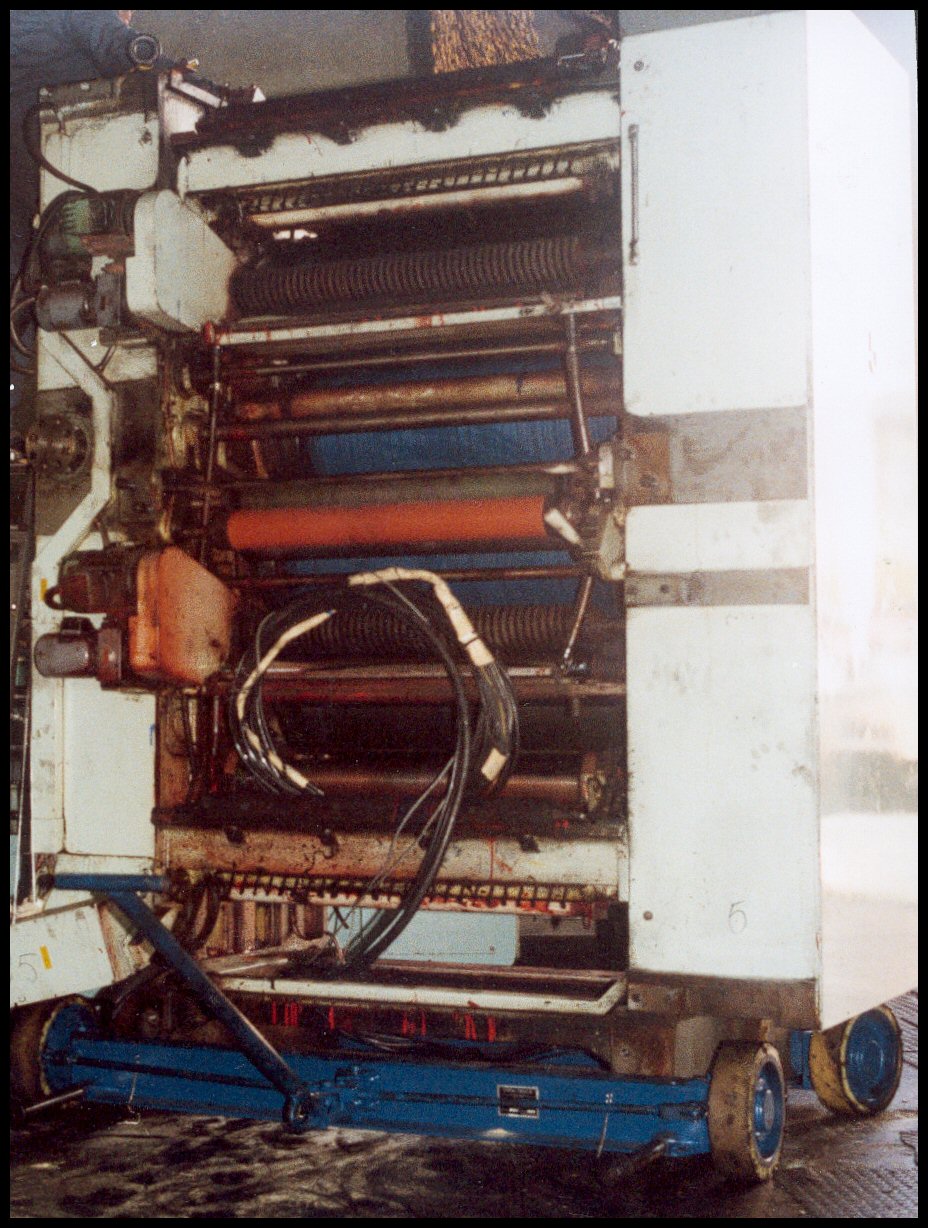

Some example of the possible use of an OMNI-TRUCK
"OMNI-TRUCK" is a trademark patented by the S.A RAIMBAULT.
